Application of biological sample transportation management monitoring system

read:1533 read:2020-05-22 source:Internet of Things Industry Service Provider tag:

.Summary of case

With the development of a new round of information technology, such as Internet of things, big data and mobile applications, the transformation of traditional transportation management of biological samples begins to enter a substantial stage. However, the transportation of biological samples in China lacks effective control, and there is no effective supervision means to obtain the temperature and humidity information of the transportation box at any time. There is no guarantee whether the biological samples are very good in the whole transportation process. In fact, it is likely that the biological samples have deteriorated seriously because of the temperature and humidity control. It affects the quality of biological samples in the circulation process of each unit.

Of suzhou city, jiangsu province medical transport enterprises, now has all kinds of biological samples medicine carrying case, rely on the traditional way of local monitoring, rely mainly on personnel real-time observation, local data acquisition cannot achieve remote monitoring, lack of transportation in the process of transportation box to realize monitoring and management, management of quality, efficiency is low, can't control the transport box risks in the process of transportation, there is a big security hidden danger.

Diffuse way science and technology development in the Yangtze river delta region and the wisdom to build capacity in industrial Internet service providers, according to the requirement of the enterprise of wireless transmission, GPS positioning, edge computing, remote control, qr code identification technology, in the original traditional transport box, above its acquisition terminal cold-chain monitor as the temperature and humidity data acquisition, transmission, equipment localization, the control core, has developed for its collection of on-line monitoring, transportation equipment box remote control, transportation path monitoring, staff management, waybill management, account monitoring, abnormal alarm management in the integration of equipment remote online monitoring system. The product helps the enterprise to solve the real-time collection of environmental temperature and humidity data of the transport box, real-time monitoring of the transport path, abnormal alarm of the transport box, remote control, waybill management and so on. Realize the transformation of traditional medicine transportation management to wisdom and improve the quality and efficiency of management.

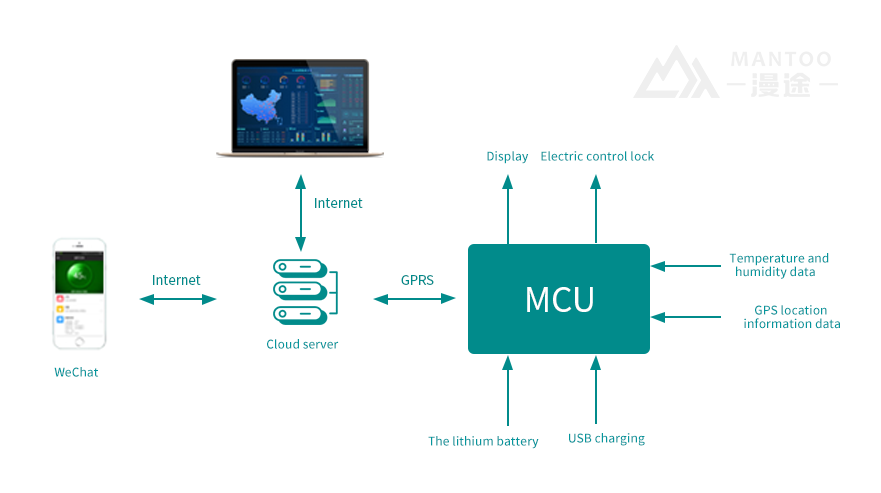

.System architecture diagram

Ⅲ.System function

※Remote data collection: real-time collection of temperature and humidity data and GPS position information during transportation

※local data display: the transportation equipment is equipped with a display screen, and the temperature and humidity data can be checked in real time

※Real-time alarm: alarm function of temperature and humidity data exceeding the limit and illegal unpacking

※Remote monitoring: remote monitoring can be used to monitor local data in real time for transportation equipment

※Account management: the administrator can assign the account, modify the authorization of the account, and check the login status of each account

※waybill monitoring: real-time monitoring of waybill can be realized

exception arbitration: when an exception occurs in the transportation equipment, the background can see when and where the abnormal state occurs, so as to provide a factual basis for the abnormal events

※employee management: realize the actual management of the assigned account

※Report management: the background can provide all kinds of data report management

※WeChat ordering: the system has WeChat terminal ordering function, easy to use.

※scan code to open the box: the mobile phone login WeChat terminal, after having the permission can scan code to open the box, safe and convenient

Ⅳ.Software system interface

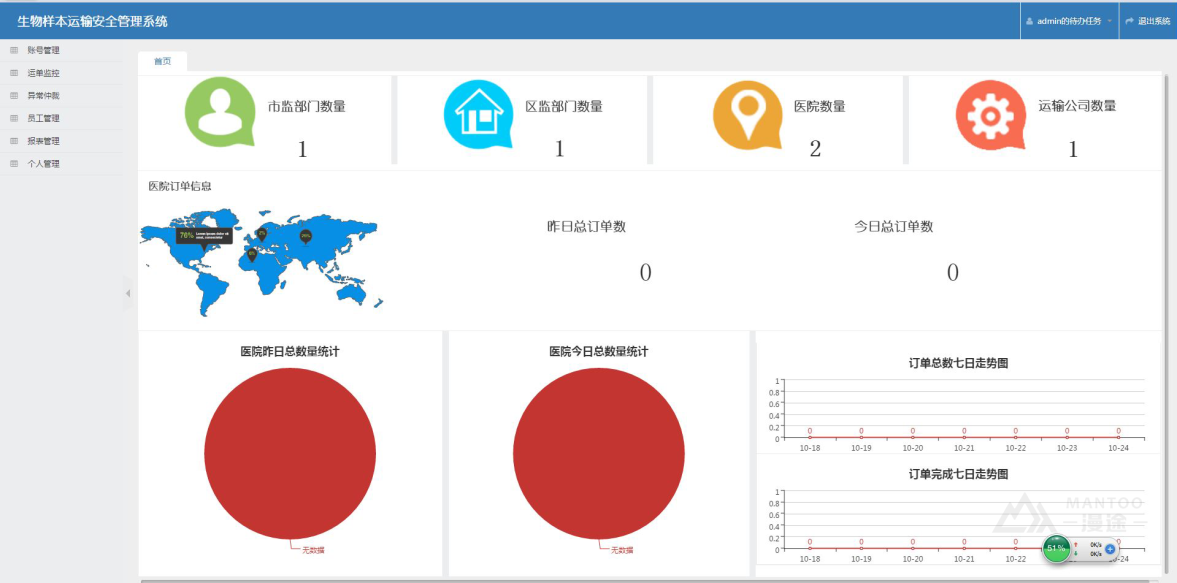

Management background:

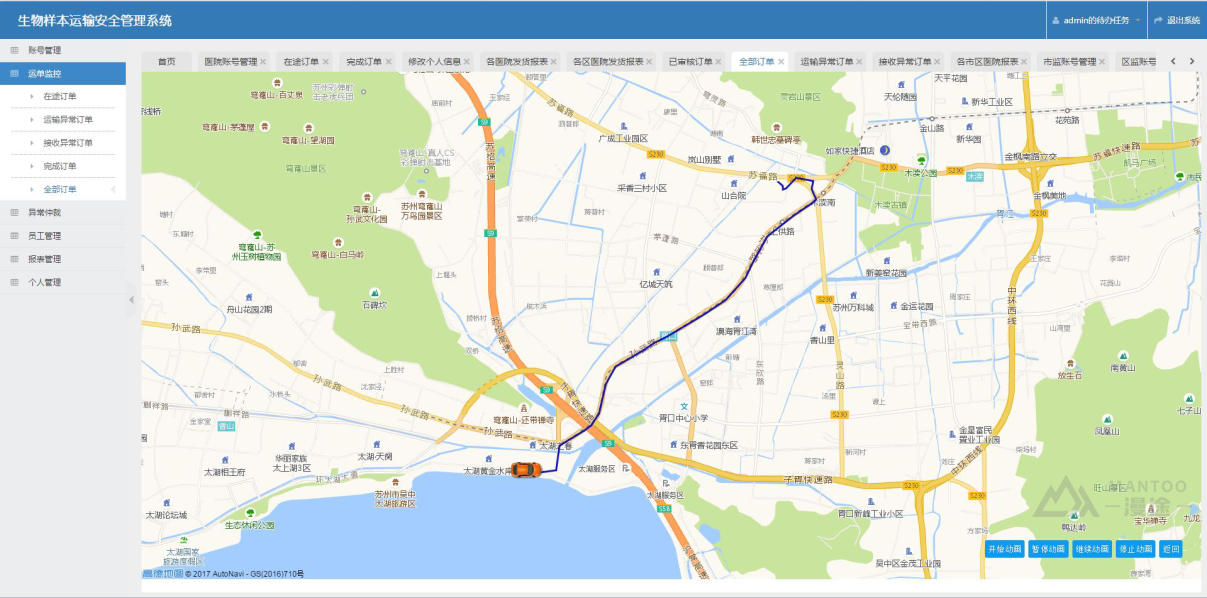

Equipment transport track

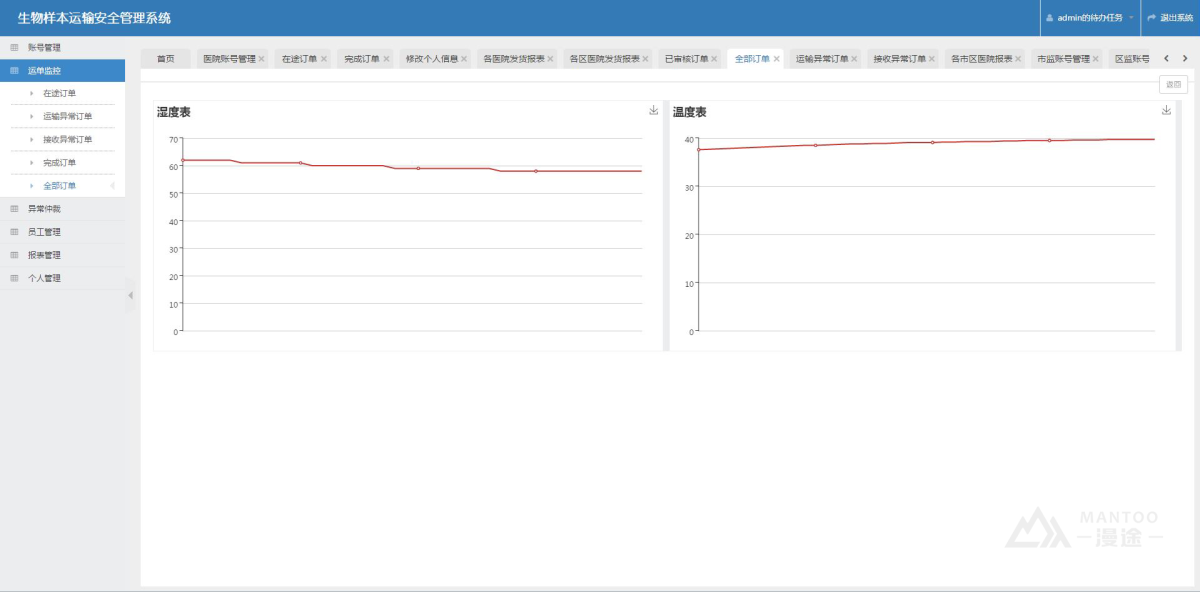

Temperature and humidity data curve

Equipment transport track

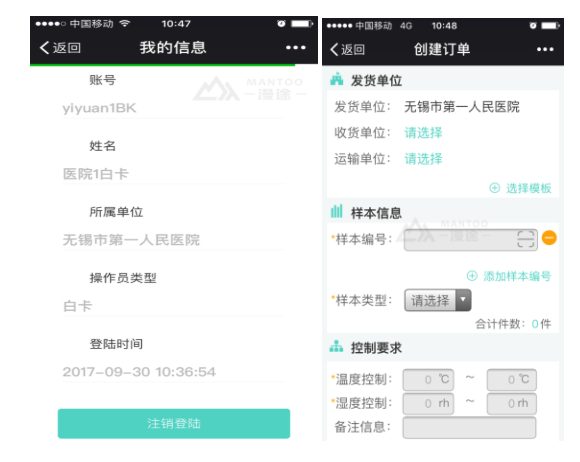

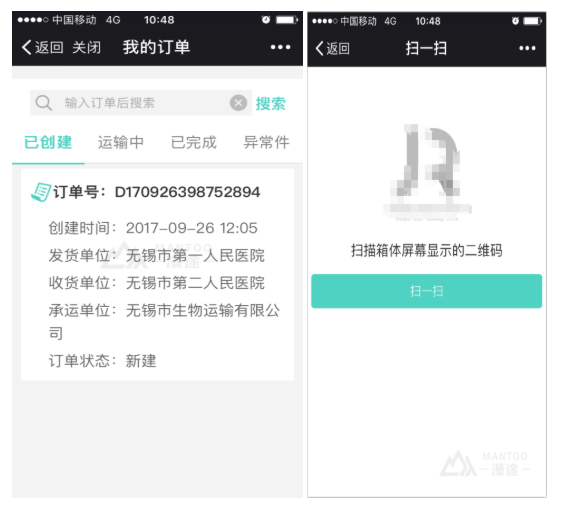

WeChat terminal system:

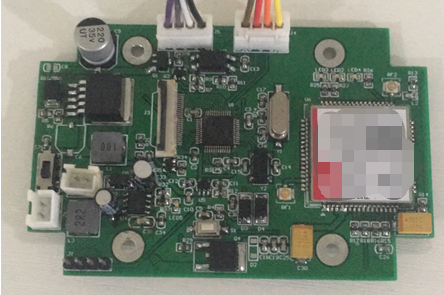

Ⅴ.Hardware product introduction

Product introduction:

The cold chain controller of the transportation box adopts industry-level chip, high-precision digital temperature and humidity sensor, adopts line transmission, GPS positioning, edge calculation, remote control, two-dimensional code identification technology, and supports online temperature and humidity data collection, transmission, device positioning and control functions.

In the system, it is mainly used to collect the temperature and humidity data of the transport box and the status data of the transport box, display the local data information, remote data transmission, remote unpacking control of the transport box and local unpacking control of the scanning code.

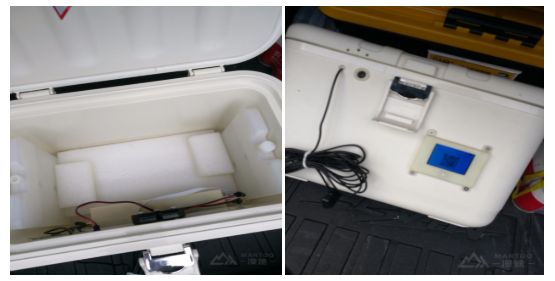

Ⅵ. Field application picture

Ⅶ.The customer evaluation

Mantoo technology provides a set of biological sample transportation monitoring system for our enterprise to solve the transportation box environment temperature and humidity data real-time collection, real-time transportation path monitoring, transportation box abnormal alarm, remote control, waybill management. Realize the transformation of traditional medicine transportation management to wisdom, improve the quality and efficiency of management, and greatly increase the output value.
